7822

Series CL100 EcoPlug
Part Number 7822

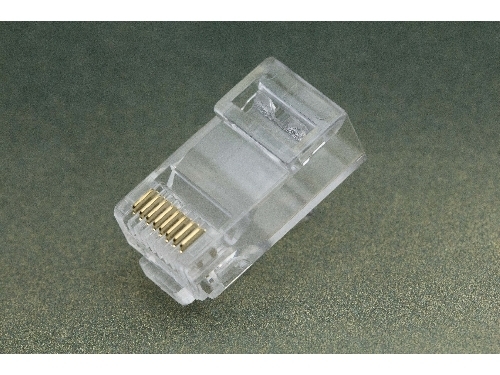

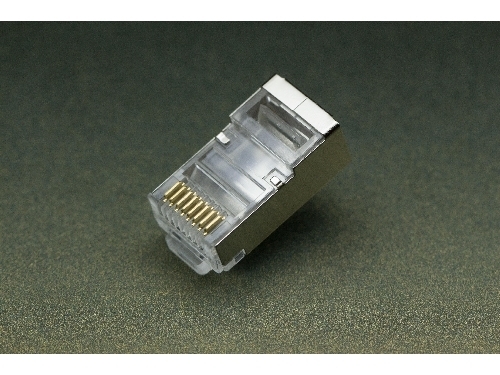

Description Modular Plug 8P8C (RJ45)
Application Telecommunication, Ethernet, POE, Data Transmission
Availability In stock, can ship immediately
Lead Free Status Lead Free
Halogen Free Status Not Detected
RoHS Status RoHS Compliant
UL Status UL Certificated
Moisture Sensitivity Level (MSL) 1 (unlimited)
Standard Lead Time Three to five work days

Documentation

Datasheet 7822 2D Product Drawing
Termination Instructions -
Crimping Tool CT001-001-1

Product Attributes

Part Status Active
Cable Type Flat Oval/Round Cable
Number of Positions/Contacts 8P8C (RJ45)
Contact Material Copper Alloy
Contact Finish Gold
Insulation Type Stranded Wires / Solid Wires
Wire Gauge 24~26
Shielding Unshielded
Shielding Material -
Shielding Finish -
Rating Cat6
Termination IDC
Color Clear
Features Ecoplug
Ingress Protection -
Housing Material Polycarbonate (PC)
Current Rating 1.5A
Voltage Rating 125V
Mating Cycles > 750 cycles
Packing Bag
