Modular Plug
7615
Series | CL100 |
---|---|
Part Number | 7615 |
Description | Modular Plug NXT Type 6P4C (RJ11, RJ14), 6P6C (RJ11, RJ12, RJ25) |
Application | Telecommunication |
Availability | In stock, can ship immediately |
Lead Free Status | Lead Free |
Halogen Free Status | Not Detected |
RoHS Status | RoHS Compliant |
UL Status | UL Certificated |
Moisture Sensitivity Level (MSL) | 1 (unlimited) |
Standard Lead Time | Three to five work days |
Documents

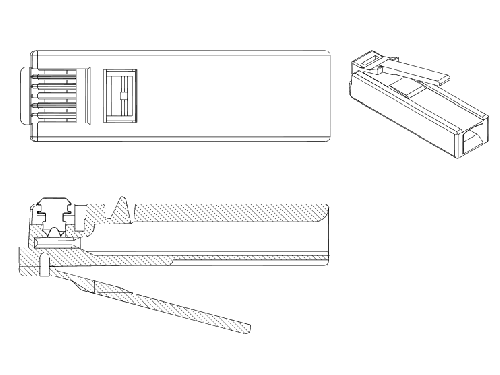

Datasheet | 7615 2D Drawing |
---|---|
Termination Instructions | - |
Crimping Tool | -
CT001-005-1 LEGO Mindstorms EV3 & NXT Motor |
Product Attributes
Part Status | Active |
---|---|
Cable Type | Flat Oval Cable / Round Cable |
Number of Positions/Contacts | 6P4C (RJ11, RJ14), 6P6C (RJ11, RJ12, RJ25) |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulation Type | Stranded Wires / Solid Wires |
Wire Gauge | 24~26 |
Shielding | Unshielded |
Shielding Material | - |
Shielding Finish | - |
Termination | IDC |
Color | Clear |
Features | For LEGO NXT Mindstorm Kit |
Ingress Protection | - |
Housing Material | Polycarbonate (PC) |
Current Rating | 1.5A |
Voltage Rating | 125V |
Mating Cycles | > 750 cycles |
Packing | Bag |
Download
Type | Files Name | Download |
---|---|---|
2D Drawing | Connect | |
SGS Reports | Connect |
