Modular Plug
7801
| Series | CL100 |
|---|---|
| Part Number | 7801 |
| Description | Cat5e Modular Plug 8P2C, 8P4C, 8P8C (RJ45), Flat/Round Cable, Stranded/Solid Wire |
| Application | Telecommunication, Ethernet, POE |
| Availability | In stock, can ship immediately |
| Lead Free Status | Lead Free |
| Halogen Free Status | Not Detected |
| RoHS Status | RoHS Compliant |
| UL Status | UL Certificated |
| Moisture Sensitivity Level (MSL) | 1 (unlimited) |
| Standard Lead Time | Three to five work days |
Documentation

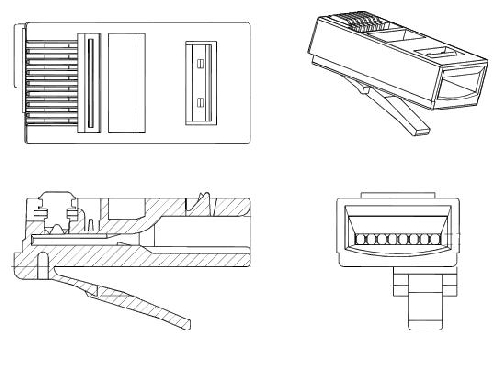

| Datasheet | 7801 2D Product Drawing |
|---|---|
| Variations | 7801A 2D Product Drawing |
| Termination Instructions | - |
| Crimping Tool | CT001-001-1 |
Product Attributes
| Part Status | Active |
|---|---|
| Cable Type | Flat Oval/Round Cable |
| Number of Positions/Contacts | 8P2C, 8P4C, 8P8C (RJ45) |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Insulation Type | Stranded Wires / Solid Wires |
| Wire Gauge | 24~26 |
| Shielding | Unshielded |
| Shielding Material | - |
| Shielding Finish | - |
| Rating | Cat5e |
| Termination | IDC |
| Color | Clear |
| Features | - |
| Ingress Protection | - |
| Housing Material | Polycarbonate (PC) |
| Current Rating | 1.5A |
| Voltage Rating | 125V |
| Mating Cycles | > 750 cycles |
| Packing | Bag |
Download
| Type | Files Name | Download |
|---|---|---|
| 2D Drawing | Connect | |
| SGS Reports | Connect |
